Kodi + multichannel audio

[LeFric]

With firmware 1.0.3 (and its update installed), Kodi 16.1 without wrapper takes the menu Blu-ray and audio in 2.0

With firmware 1.0.3 (and its update installed), Kodi 16.1 wrapper NO plays zilch




This is so?
How have the audio in 5.1 or 7.1?

[Phil181]

This is so?
How have the audio in 5.1 or 7.1?

Assuming you have plugged HDMI cable into your Audio Video Receiver?
Look at the included "Quick Guide":
Audio and Video Connections;
3. Connecting to Home Theater Receiver or Sound System (7.1 CH)
C: Go to Settings, Playback;

Set HDMI Output RAW, SPDIF Output RAW, HBR Output RAW 7.1

A good idea is for you to look at the excellent thread on the Kodi forum with lots of hard work by @hdmkv
http://forum.kodi.tv/showthread.php?tid=265888

[LeFric]

[futeko.com]

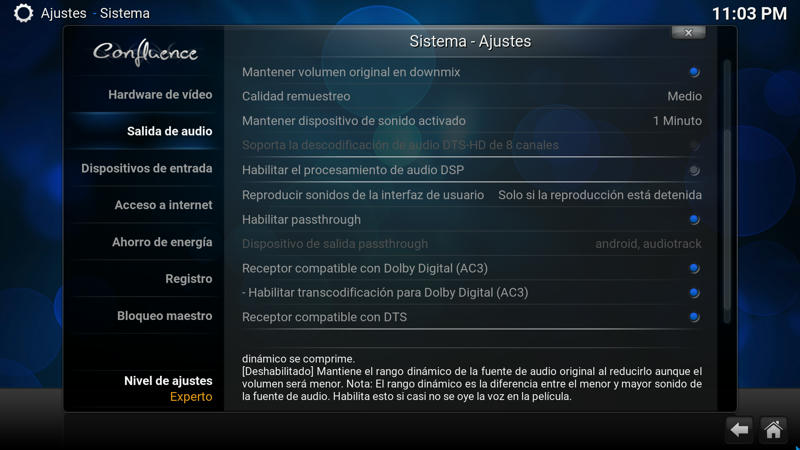

For Kodi without wrapper, My Spanish isn't great but on the 4th image I think you need to check the box marked 'Habilitar passthrough' (enable passthrough). That should give you 5.1 Dolby Digital.

For Kodi with wrapper (and HiMedia MediaCenter?) you say you get only two channel PCM? Your settings are correct so please post the mediainfo report for the file.

[LeFric]

If I do what you say out noise (audio without decoding) ...

[futeko.com]

The noise may well be the Dolby Digital signal, but your receiver isn't decoding it.

[LeFric]

And what do I do?

[futeko.com]

If the noise is correct Dolby Digital and your receiver isn't decoding it correctly then there isn't much you can do.

Does Dolby Digital audio play correctly using the HiMedia MediaCenter app? Your bottom two photos show the amp playing from Dune and Q5/Q10, they both show Dolby Digital 3/2, which is correct. I am confused as to why the amp would show DD 3/2 but then play 2 channel. It implies that the input signal is correct (it is being identified correctly) then something is going wrong on the amp side. Have you tried the Q5/Q10 plugged into the same HDMI input on the amp as the Dune?

[LeFric]

Yes, the entrance to the Q10 Pro perfectly decodes the audio of my Dune ...

[pcristi]

With your setting is work like design, Kodi passthrough PCM 2.0 because of "Soporta la descodification de audio DTS-HD de 8 canales" activate

For DTS/DD passthrough Habilitar passthrough need to be activate, Receptor compatibele DTS activate.
(I sugest to keep "Numero de canales" 2.0 like this can use "Habilitar transcodificacin para Dolby Digital (AC3)")

Yes, the entrance to the Q10 Pro perfectly decodes the audio of my Dune ...
